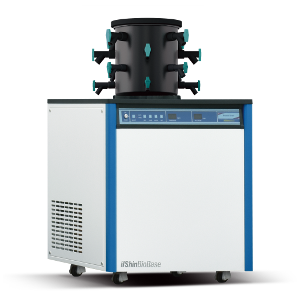

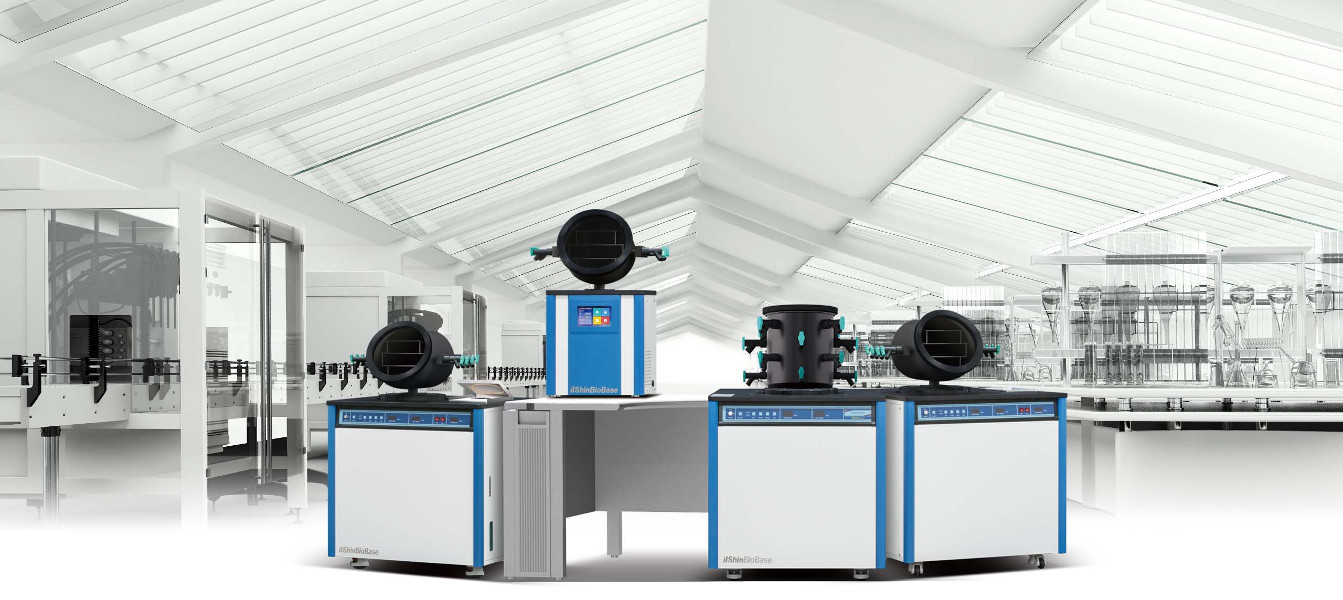

FREEZE DRYER

ILSHIN BIOBASE has developed Table Top Freeze Dryer by combination of ultra low temperature freezing technology and vacuum drying technology since 1988. ILSHIN BIOBASE freeze dryers suit for the various requirements of customers by modular combination of each functionality and flexibility, so customer can accomplish prompt and easy freeze drying research and development.

Features:

  • Defrosting system
  • Remote access & observation window
  • Micro processor LED control system
  • Multi drying chamber

TABLE TOP FREEZE DRYER

ILSHIN BIOBASE Table Top Freeze Dryer can sustain with narrow space because of compact design. Prompt result of freeze drying can obtained from friendly design optimized for customer’s research environment.

Features:

  • Compact Size
  • 7" TFT LCD Touch Screen
  • Defrosting system
  • Remote Access & Observation Window
  • Multi drying chamber

FREEZE DRYER with Shell Freezer - FDS

Shell freezer provides fast refrigeration down to -40℃ by powerful cooling system. Specially designed rotary system disperses the sample with uniformity for efficient drying result and shortest process lead time.

Features:

  • Rotary system pre-refrigeration
  • Defrosting system
  • Remote Access & Observation Window
  • Microprocessor LED Control System
  • Multi drying chamber

FREEZE DRYER with Micro Concentrator - MCFD

High speed centrifuge provides concentration under vacuum at limited space. Fast and efficient drying process is guaranteed by heating device as standard feature.

Features:

  • High-speed concentrator
  • Defrosting system
  • Remote Access & Observation Window
  • Microprocessor LED Control System
  • Multi drying chamber
SeriesTFD 8501 TFD 8503 FD 8508 FD 8512 FD 8518 FD 12008
Ice capacity 1 liter2 liters 5 liters 10 liters 12 liters 5 liters
Totally ice capacity 2 liters 3 liters 8 liters 12 liters 18 liters 8 liters
Condenser temperature -70℃ to -85℃ -100℃ to -120℃
Ext. dimensions
(WxDxH mm)
450 x 525 x 500 mm800 x 650 x 400 mm 800 x 705 x 860 mm 850 x 750 x 885 mm
Refrigeration3/8 HP1 1/4 HP2 x 1 1/2 HP
Electrical220V 60Hz, 230V 50Hz
CertificationISO9001 / ISO 14001 / CE
Option
- Drying ChamberMulti Drying Chamber / Drying Chamber / Clear Drying Chamber / Heated Drying Chamber / Manifold Chamber
- Product ShelfPH1212PH1316
- Vacuum PumpISL6 (100 LPM) ISL136 (196 LPM) ISL136 (196 LPM) / ISL201 (283 LPM)
SeriesMCFD 8508 MCFD 8512 MCFD 8518 FDS 8508 FDS 8512 FDS 8518
Ice capacity 5 liters 10 liters 12 liters 5 liters 10 liters 12 liters
Totally ice capacity 8 liters 12 liters 18 liters 8 liters 12 liters 18 liters
Condenser temperature -70℃ to -85℃-70℃ to -85℃/Shell freezer: -40℃
Ext. dimensions
(WxDxH mm)
1005 x 750 x 885 mm850 x 750 x 860 mm
Refrigeration1 1/4 HP1 1/4 HP + 3/8 HP
Electrical220V 60Hz, 230V 50Hz
CertificationISO9001 / ISO14001 / CE
Option
- Drying ChamberMDC(Manifold 8 Port) or (H)DC1316 (**01/03 use to (H)DC1212)
- Product ShelfPH1316
- Vacuum PumpISL136 (196 LPM) / ISL201 (283 LPM)

Accessories and Spare Parts

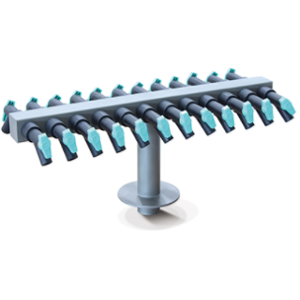

Manifold Chamber

Optimal for ampoule drying. PTFE coating protects chamber from corrosion by acid or chemical substances. Anti acid vacuum pump is recommended for drying acid containing samples.

ModelDescription
MC 1224 12 x ½” Valves 275mm (H) x 230 mm (D) with Heater function
MC 3412 12 x ¾” Valves
MC 1324 12 x ½” and 12 x ¾” Valves
MC 1204 4 x ½” Valves

Vacuum Pumps

  • High quality, corrosion resistant materials
  • Advanced oil lubrication-ensures reliable running even at high gas loads
  • Proven oil and air suck-back protection
  • Complete range of easy-to-fit accessories to protect both pumps and the environment
  • Low noise levels and minimum vibration
  • Direct drive-built to exacting safety standards
  • Opposed two-vane design helps prevent blades sticking
  • Easy maintenance with effective international service back-up
Model NO.ISL-6 ISL-136 ISL-201
Capacity 100L/Min196L/Min 283L/Min
Type Direct Driven
Ult-Pressure 1.5 x 10-3 Torr
Ballast Equipped with Vacuum Pumps
Model NO.ISLA-045 ISLA-115 ISLA-165 ISLA-318
Capacity 45L/Min 115L/Min 165L/Min 318L/Min
Type Direct Driven
Ult-Pressure 4 x 10-4 mbar
Ballast Equipped with Vacuum Pumps

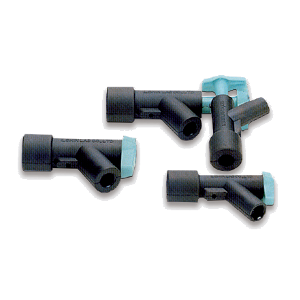

Valves

ilShin BioBase valve specially designed considering safety of sample itself after drying. It is consisted of "backfilling system" which protects sample from air pollution through vent input in Neoprene body. Valve body is made of Neoprene which does not change with heat in case of ampoule sealing with sealing torch, so it can be used for a long time with safety. There are 1/2" and 3/4" standards and ampoule valve without ampoule adapter is prepared.

Valve Size Complete Valve Polypropylene Stem Only Neoprene Body Only
1/2" CV0012 PS0012 NB0012
3/4"CV0034 PS0034 NB0034

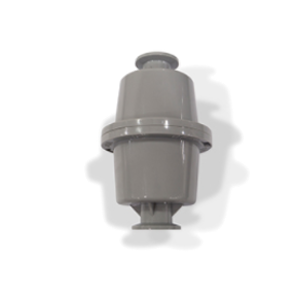

EF2561 Pump Exhaust Filter

Disposable filter removes all visible oil mist from vacuum pump exhaust. May be exhausted into work area without duct. Includes filter assembly, one set of filter tubes mesh pad and back pressure gauge, 0-15 psig. Life approximately 2500 hours at 10 microns vacuum.
